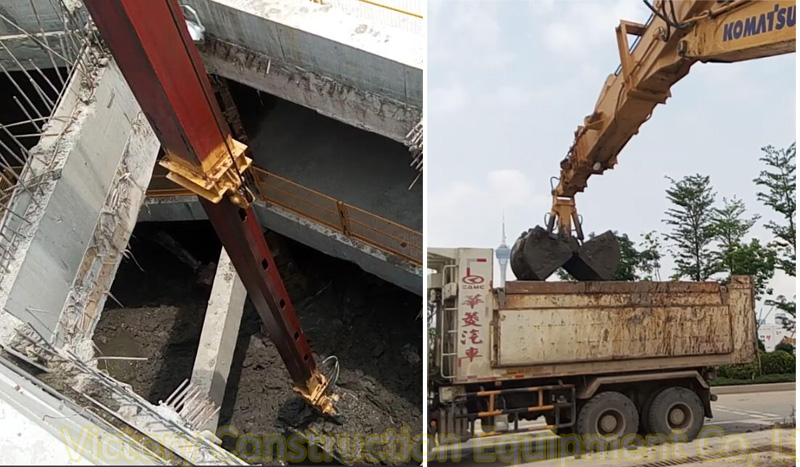

Telescopic dipper is specialize in carring out or picking up material from a pit in an confined space, and yet a long reach boom attachment still deems to be too cumbersome. It is widely used in deep foundation pit of bridge, Metro construction.
.jpg)

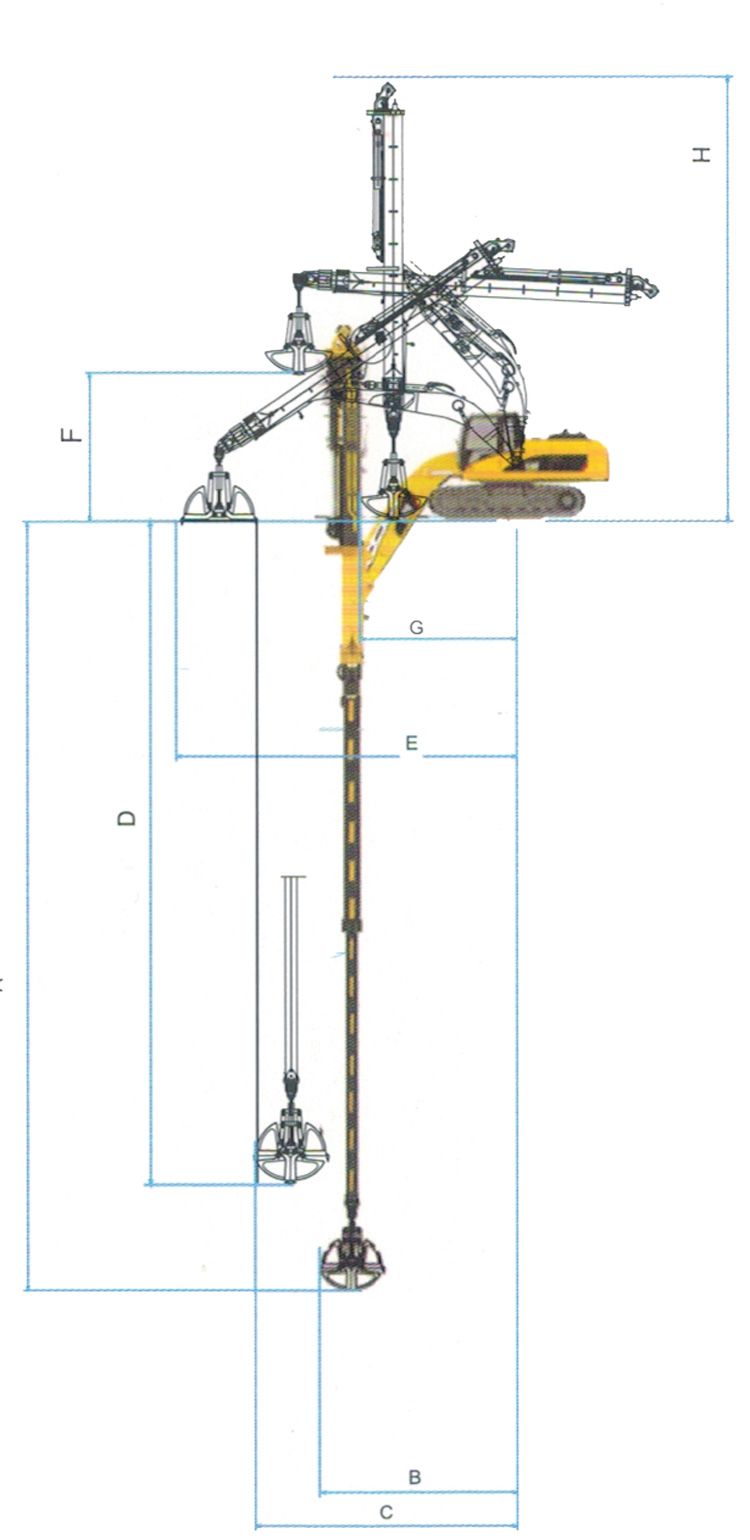

| Excavator size(T) | ≧15t | ≧23t | ≧36t |
|---|---|---|---|
| A Max. Vertical Digging Depth(mm) | 45200 | 22490 | 27180 |
| B Max. Vertical Digging Depth (Reach Max. Working Radius) (mm) | 4670 | 5845 | 6400 |
| C Max. Vertical Digging Radius (mm) | 6430 | 7445 | 8530 |
| D Digging Depth (Reach Max. Vertical Digging Radius) (mm) | 11825 | 19920 | 22370 |
| E Max. Working Radius (mm) | 7950 | 9835 | 11250 |
| F Max. Unloading Soil Height (mm) | 2870 | 4465 | 5770 |
| G Min. Turning Radius (mm) | 3980 | 4485 | 5460 |
| H Height of Min. Turning Radius (mm) | 9475 | 13580 | 16675 |
| Weight (Kg) | 3600 | 4600 | 5600 |
| Clamshell Bucket Capacity (m3) | 0.3 | 0.6 | 1.2 |

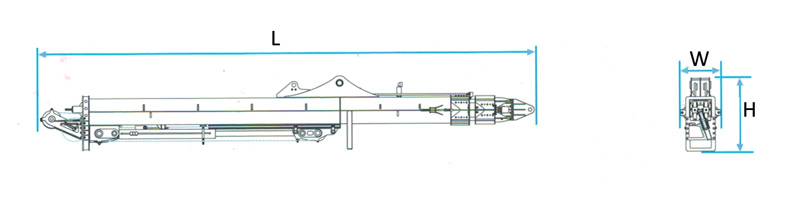

| Product Size (LxWx H) (mm) | 6970 x 872 x 1492 | 9643 x 872 x 1492 | 12390 x 872 x 1492 |
