Material Handler Boom

Application:

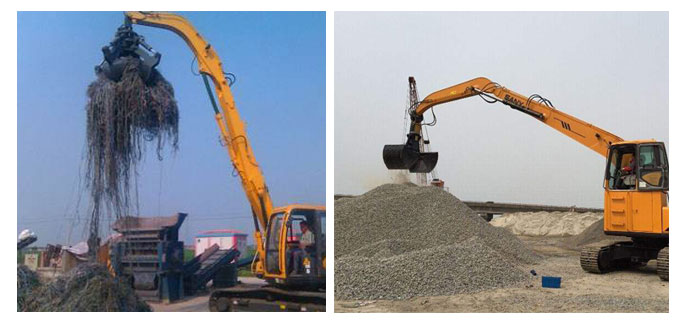

Material handling boom arm fitted on excavators from 15 to 120 tons to lift bulk material with scrap grapple or unload sand with clamshell bucket.

Material Handler Boom image

Characteristics:

• Straight/Curved main boom design according to your working range requirement
• Twin / single underslung cylinders fully exploit cylinder's force for material lifting.
• Additional counterweight is available
• Clamshell/orange peel grab/rock grapple are optional depending on application

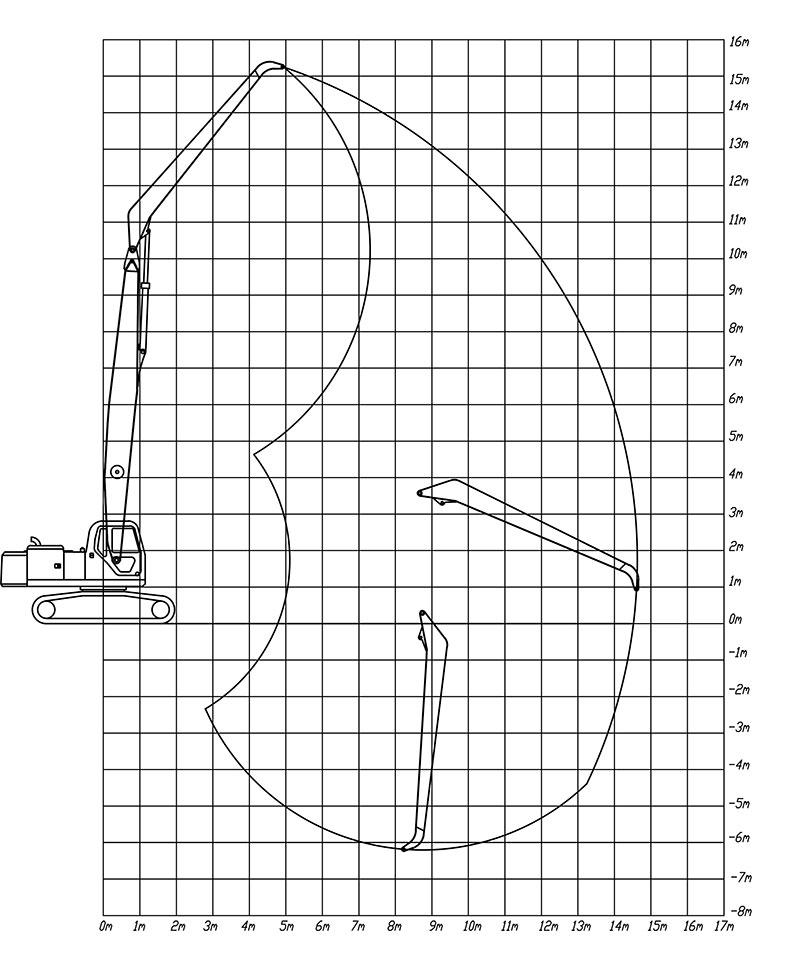

Parameter of Material Handler Booms

Excavator Class	Boom Arm Length (m)	Max. Working Reach (arm point)	Max. Working Height (arm point)	Max. Working Depth (arm point)
20 ton	11.5m 37.7′	11m 36′	12.28m 40.3′	5.68m 18.63′
25 ton	13m 42.6′	12.5m 41′	13.7m 44.9′	6.7m 22′
35 ton	14.7m 48.2′	14.2m 46.6′	15.6m 51.2′	6.15m 20.2′
47 ton	16.8m 55.1′	16.2m 53.1′	17.5m 57.4′	7.21m 23.6′

Our products can fit these excavator brands:KOMATSU,HITACHI, CATERPILLAR,SUMITOMO, HYUNDAI, KOBELCO, KATO, SANY,DAEWOO,VOLVO etc.

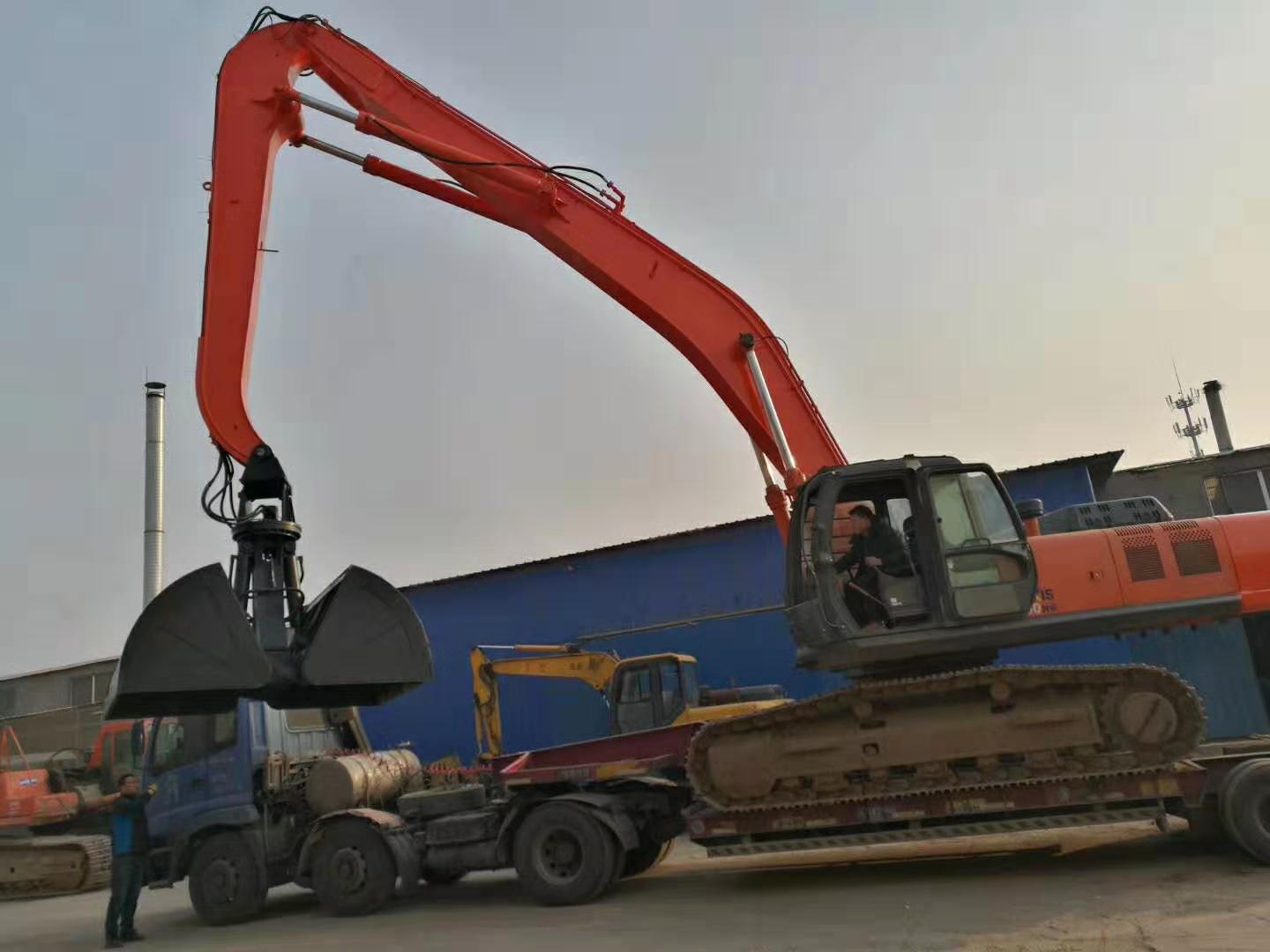

Material Handler Boom Cases
