Clamshell Bucket

Application:

Clamshell bucket for loading bulk material, or digging loose material, such as sand, etc

Image of Clamshell bucket

Characteristics

1. Strong digging or grabbing force is ensured due to shell's opening and closing are controlled directly by hydraulic ram
2. Especially suitable for working with telescopic dipper arm and material handler in a restricted working space.
3. Heavy duty type or rotary one is optional

specification of clamshell bucket

Excavator (ton)	Bucket Capacity		Weight
	(M3)	Yard3	(KG)	(Lb)
6-10	0.6	0.78	570	1257
11-16	0.8	1.05	760	1676
17-20	1	1.3	900	1984
21-24	1.2	1.57	1120	2469
25-30	1.4	1.83	1350	2976
31-35	1.6	2.09	1600	3527
36-40	1.8	2.35	1850	4079
41-45	2	2.62	2150	4740

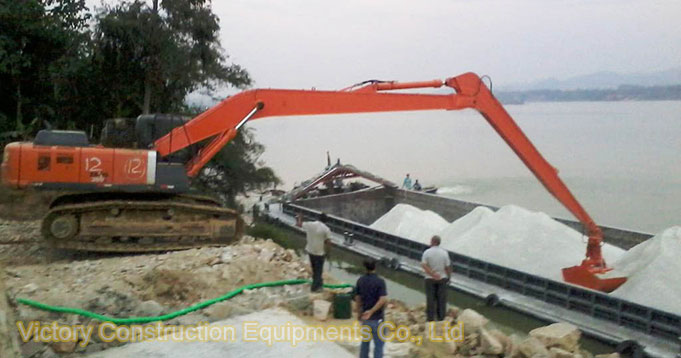

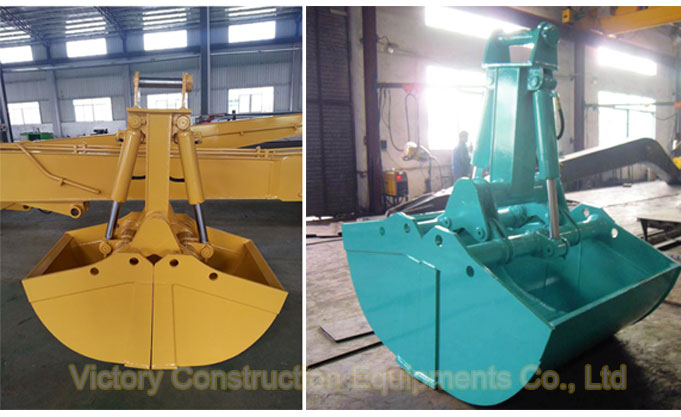

Pictures & Case of Clamshell bucket
