Orange Peel Grapple

Application:

Excavator grapple for grabbing gravel, scrap metal, industrial waste, construction debris, and daily refuse.

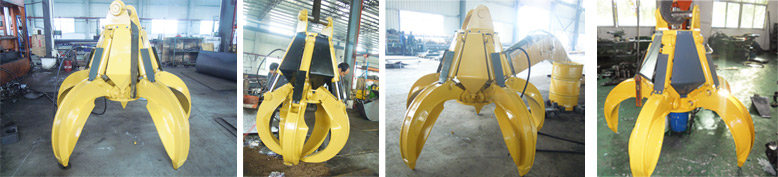

Image of Orange Peel Grapple Image

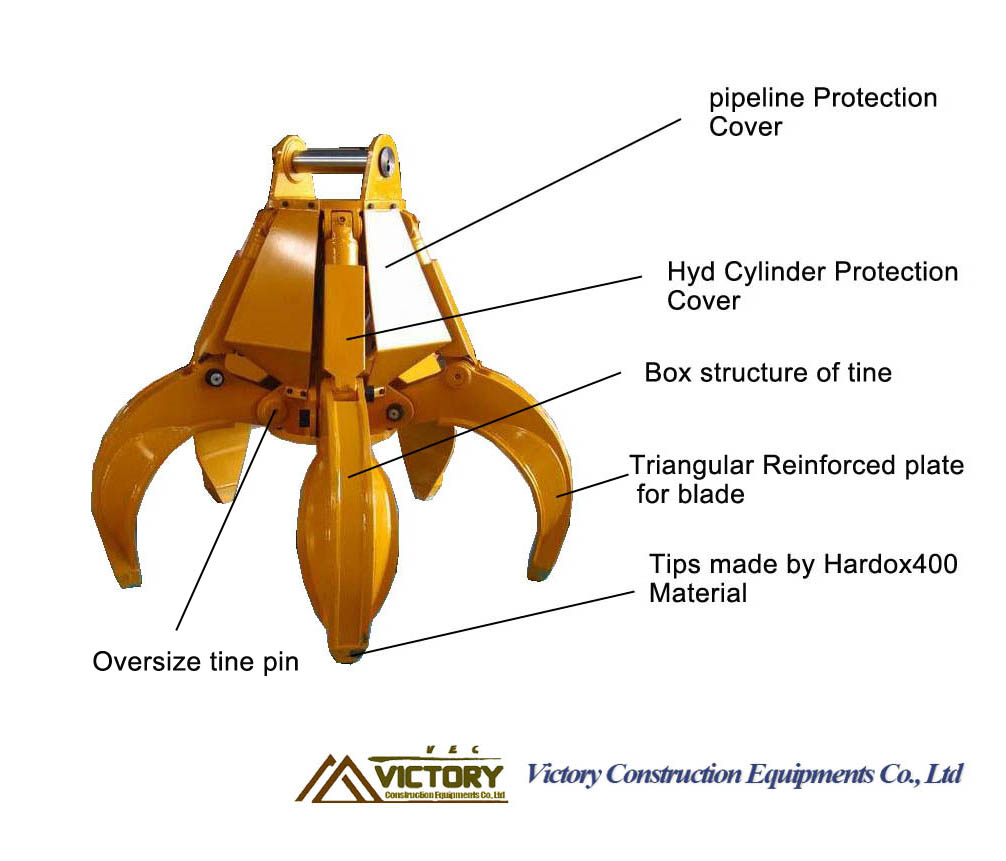

Characteristics

1. *Grapple pipes covered with steel cover
2. *Cylinder also with steel protection cover
3. *Tine is box structure that make grapple durable
4. *Triangular reinforced plate welded for blade
5. *Tips made by Hardox Material
6. *Tine pin is oversized

Parameter

Model	VOPG-100	VOPG-150	VOPG-200	VOPG-250	VOPG-300
Weight(KG)	570	820	1080	1320	2200
Max. Opening(mm)	1400	1560	1830	2000	2170
Capacity(M3)	0.31	0.43	0.59	0.9	1.2
Height(mm)	1470	1650	1780	2030	2245
Tine	4	4	5	5	5
Excavator tonnage	10-12	13-15	16-23	24-27	28-33

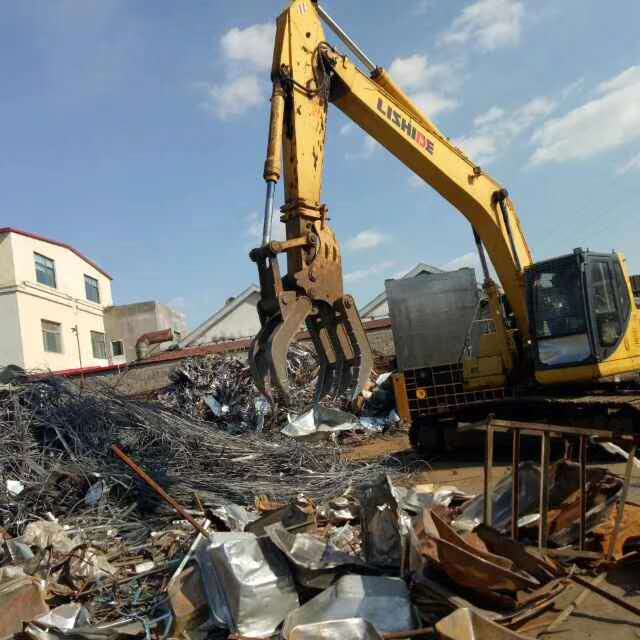

Case

Mechanical Scrap Grapple
