Log Grapple

Application:

Quick and Efficient attachment for Timber/Log Handling,

Image of Log Grapple

Characteristics

1. Mechanical grapple: Moveable Jaw driven by Hydraulic bucket cylinder, another Jaw Fixed to stick by a seamless steel rod, easily to mount and it is for light duty application
2. Hydraulic Grapple : Big grabbing force, double cylinder driven,

Specification of Hydraulic Log Grapple

Model	Excavator Class(Ton)	Weight(KG)	Max. Opening(mm)	Working Flow(L/Min)	Pressure(Bar)
VS03	4-6	320	1300	30-55	320
VS04	7-11	390	1400	50-100	320
VS06	12-16	740	1800	90-110	320
VS08	17-23	1380	2300	100-140	320
VS10	24-30	1700	2500	130-170	320

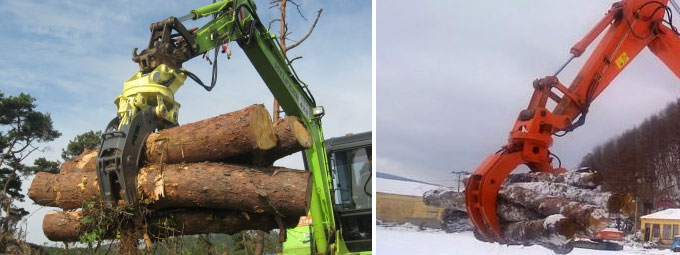

Log Grapple Case

360degree rotary log grapple, cylinder driven, robust structure, and with cylinder guard
