Rock Grapple

Application:

For handling waste metals disposal, stones, woods loading, unloading and moving,etc material work.

Image of Rock Grapple

Characteristics

1. Hydraulic Rock Grapple360-degree power rotation
2. Serrated tooth to increase gripping force and anti-skid,
3. grapple made of high strength steel Q345B
4. Over-sized and hardened pivot pin
5. Hydraulic cylinder with steel cover

Specification of Rock Grapple

Model	Excavator Class(ton)	Weight(KG)	Max. Opening(mm)	Max. Closed Area(M2)	Max. Raise height(mm)	Min. Closed Gap(mm)
ZX 70	6-9	340	1200	0.23	1290	190
ZS 120	10-15	680	1300	0.43	1640	290
ZS 200	16-24	1100	1600	0.87	1890	360
ZS 300	25-30	1400	2300	1.2	2130	450
ZS 400	31-36	1950	2800	1.83	2370	520

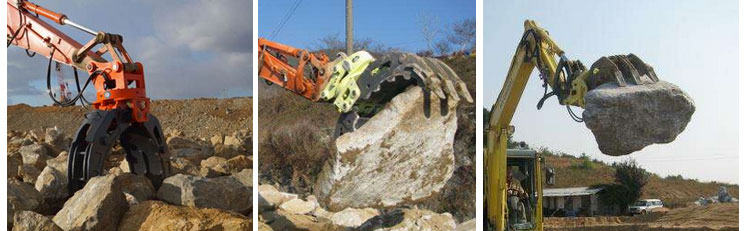

Case
