Hydraulic breaker

We manufacture light-duty and heavy-duty hydraulic breakers suitable for a wide range of excavators and carriers

Characteristics of Our hydraulic breaker

1. ◆ Incorporate much advanced technology in hydraulic breaker: leading heat treatment technical, lower noise, durable main bodies, etc.
2. ◆ Suitable for a wide range of excavators
3. ◆ Versatile application including breaking rock, paving road, building demolition etc
4. ◆ Easy use and easy maintenance

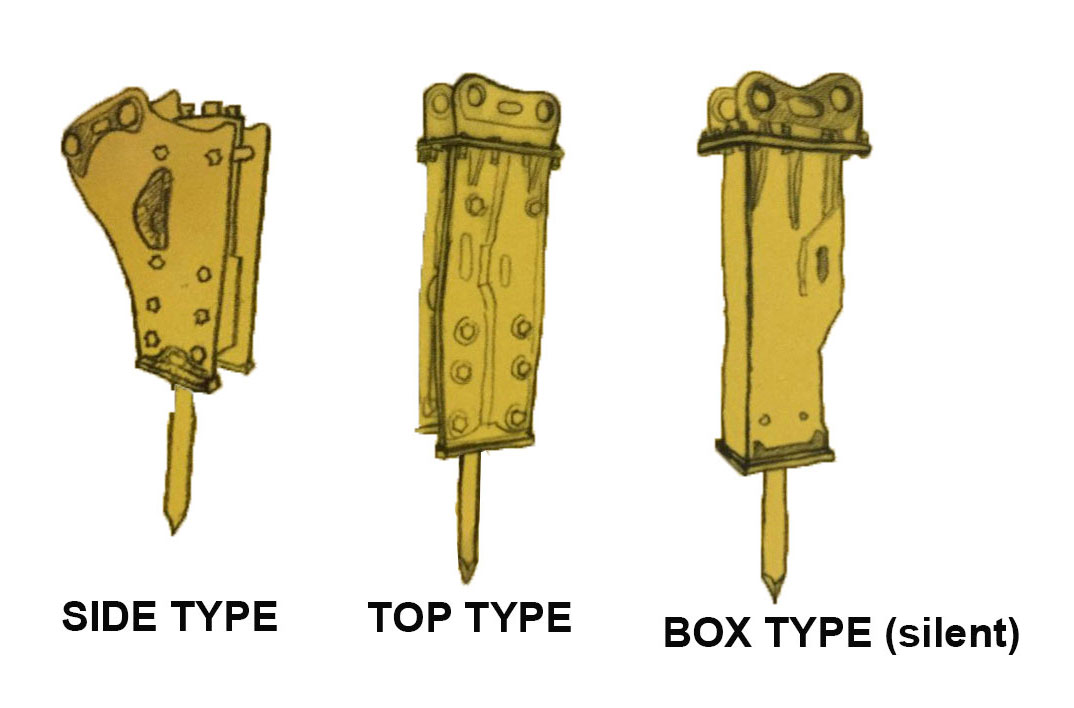

5. ◆ Top type breaker is applied to special operation that require a larger elevation angle at municipal project dismantling.

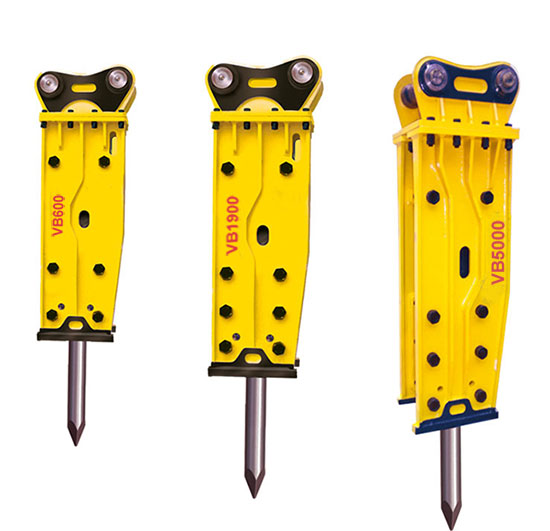

Parameter of hydraulic breaker

Model	Weight(Kg)	Length(Mm)	Pressure(kg/cm2)	Flux(L/Min)	Rate(Bpm)	Hose(Inch)	Chisel(Mm)	Suit(Ton)
VB200	100/120	1100	90-120	15-25	700-1200	1/2	45/53	1.2-3.0
VB400	298	1347	110-140	25-45	500-900	1/2	68/70	3.0-5.5
VB600	421	1528	110-160	30-45	500-800	1/2	75	4.0-7.0
VB800	577	1920	120-170	45-85	400-700	3/4	85	7.0-14
VB900	973	2260	150-170	80-120	400-700	3/4	100	11-16
VB1600	1855	2695	160-180	120-160	400-700	1	135	19-26
VB1900	1989	2810	160-180	130-170	400-600	1	140	19-26
VB2800	2420	2895	160-180	150-190	350-500	1	150	27-38
VB3500	2750	3152	160-180	170-220	250-400	1	155	28-40
VB4500	3160	3310	160-180	200-300	250-350	1.25	165	36-45
VB5000	4210	3400	160-180	210-290	200-350	1.25	175	40-55
VB5500	4720	3400	180-220	220-300	200-250	1.25	185	50-60
VB6000	4910	3420	180-220	230-320	180-200	1.25	190	55-65
VB6500	6100	3700	190-230	360-450	120-200	1.25	210	65-100

Accessories

The standard free spare parts: two pcs of Chisel, two pcs of oil tube, one pc of Nitrogen Cylinder, a set of repair tools with tool box, a Nitrogen pressure gauge and a pair of gloves.

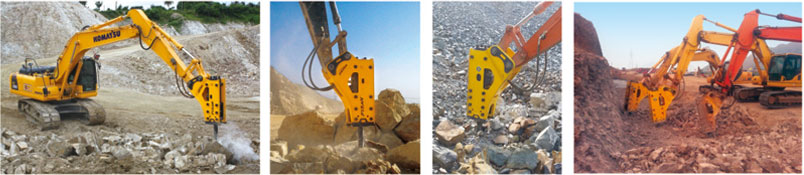

Case Of Hydraulic breaker
