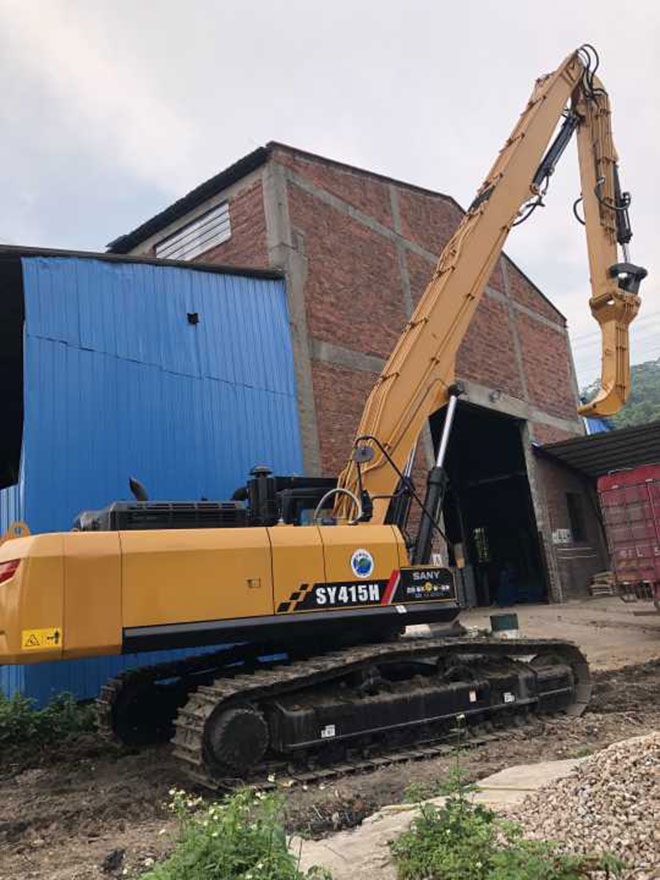

Pile Driving Long Reach Boom

Application:

Pile Driving Long Reach Boom widely used to hammer and extract longer sheet pile

Characteristics

1. straight boom for reach higher.
2. arm/stick cylinder installed under boom arm that greatly increases extracting force.
3. Reinforced for stress area.
4. Provide Full pipelines for all cylinders and hydraulic vibro hammer.

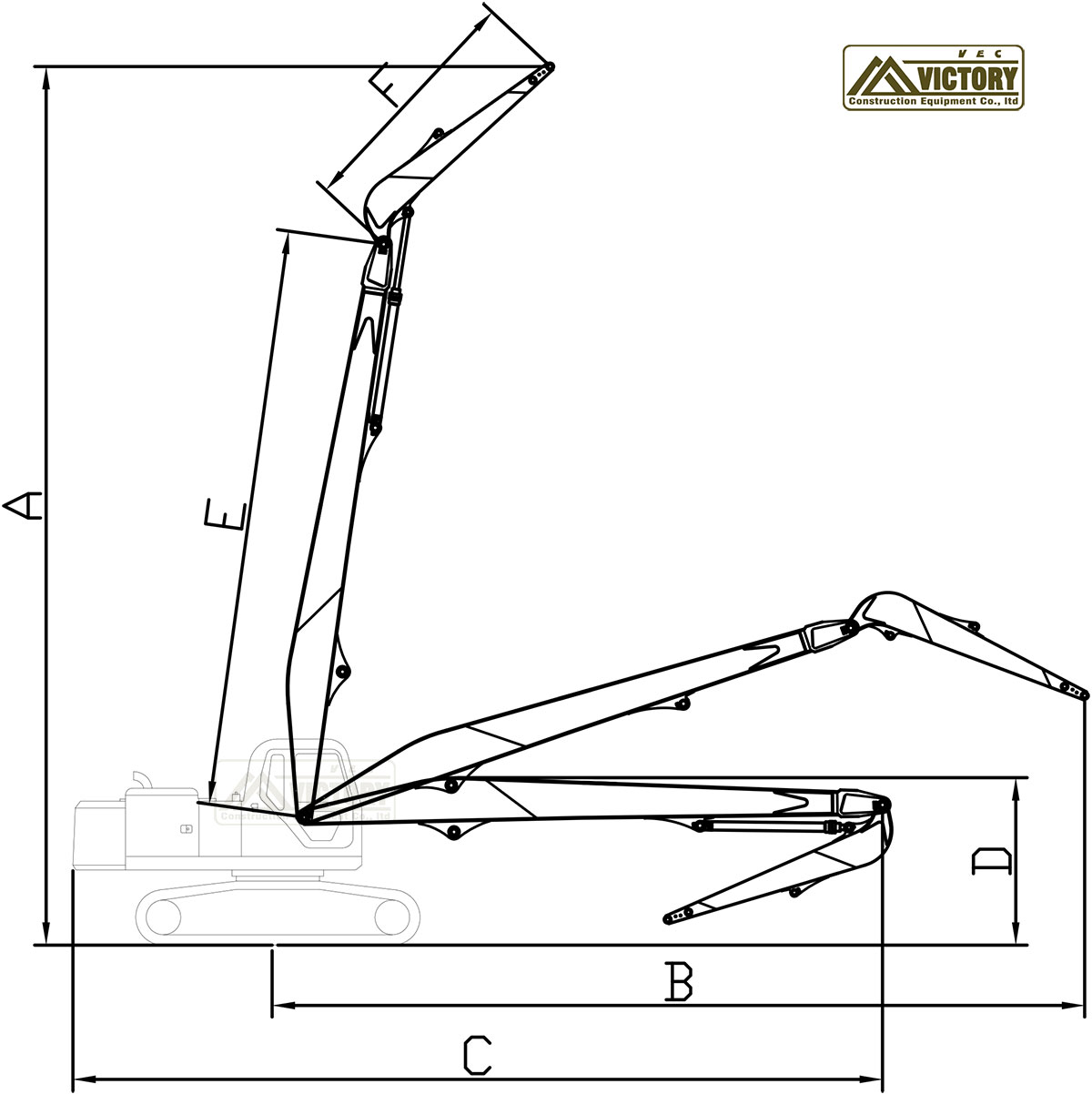

parameter

Excavator (ton)	30T-47T
Boom Arm Length (mm)	13000	16000
A: Max. Raising Height(mm)	12500	15500
B: Max. Working Radius(mm)	11500	14500
C: Transportation Length(mm)	11300	14300
D: Transportation Height(mm)	3460	3570
E: Boom Length(mm)	9000	10500
F: Arm/Stick (mm)	4000	5500
Additional Counterweight(ton)	2-3.5
Suggusting Hammer Weight (ton)	2.5	3.2

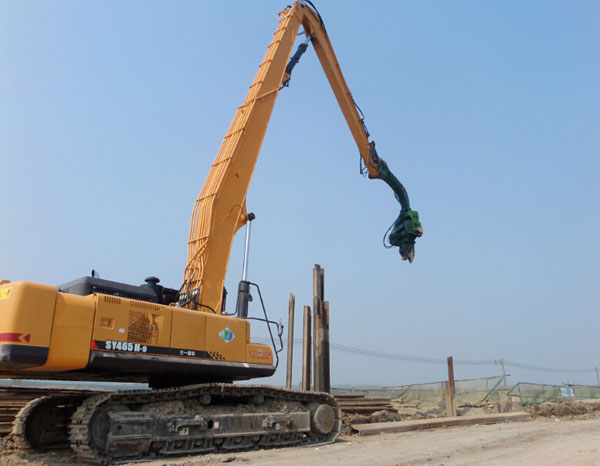

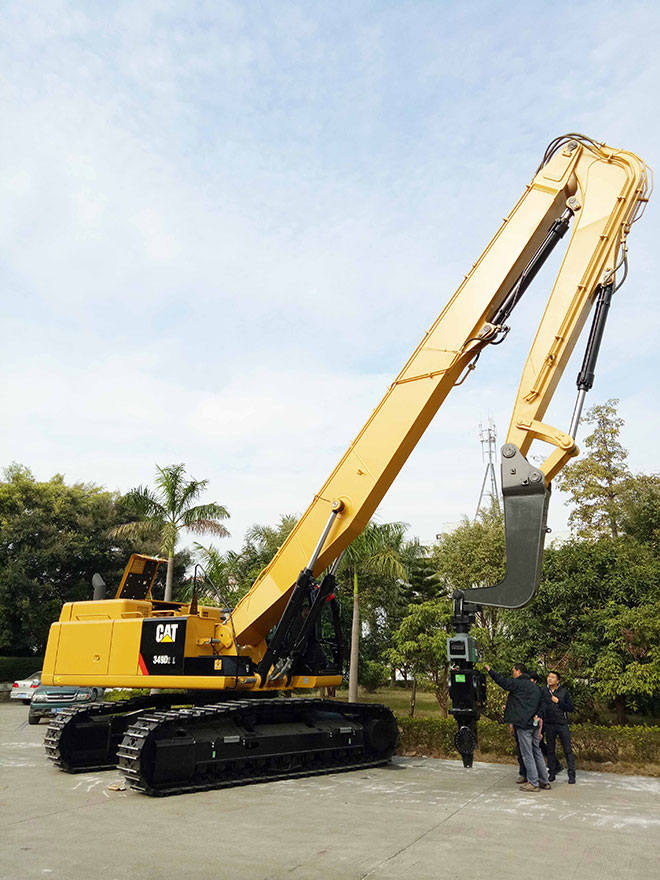

Case
